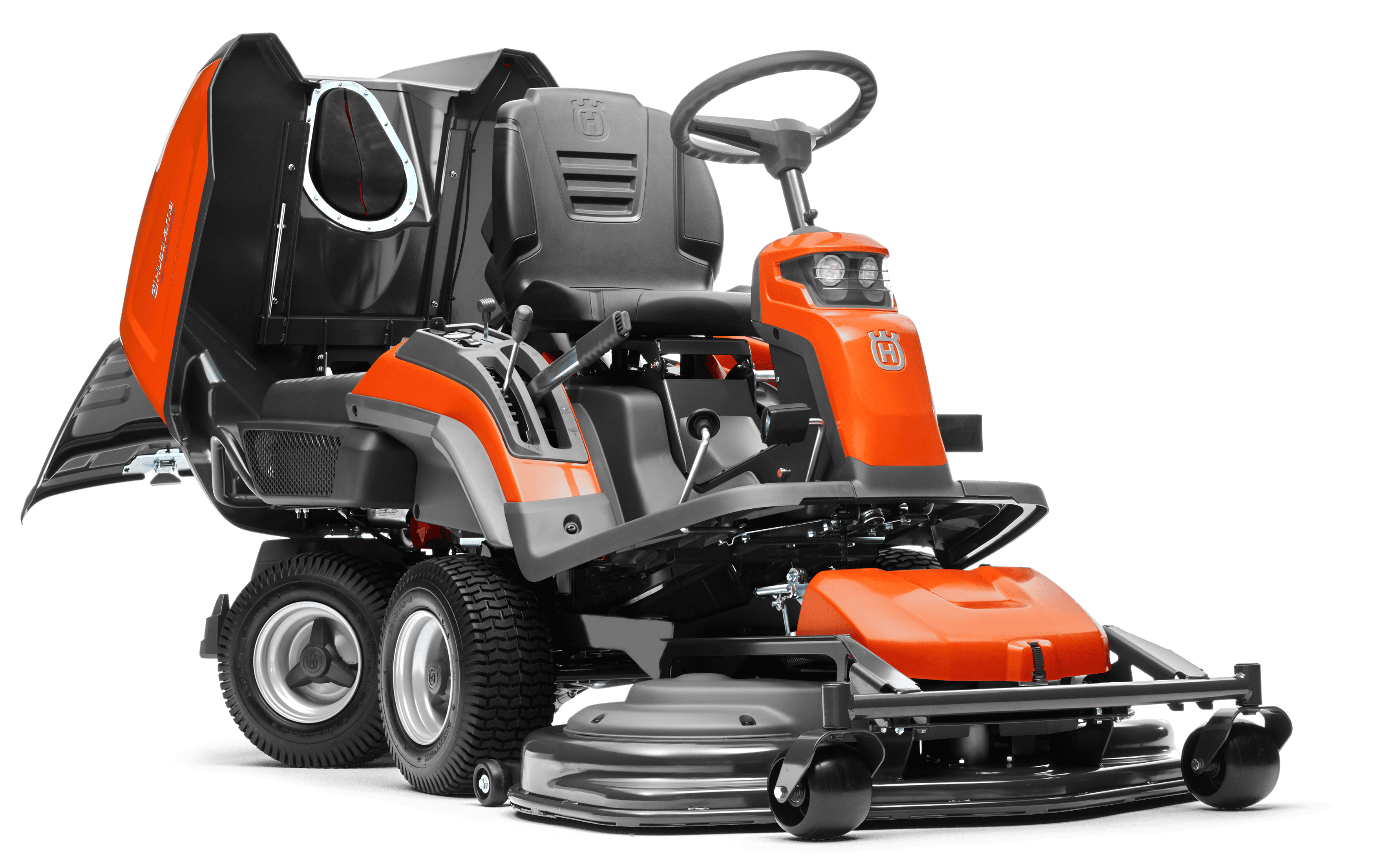

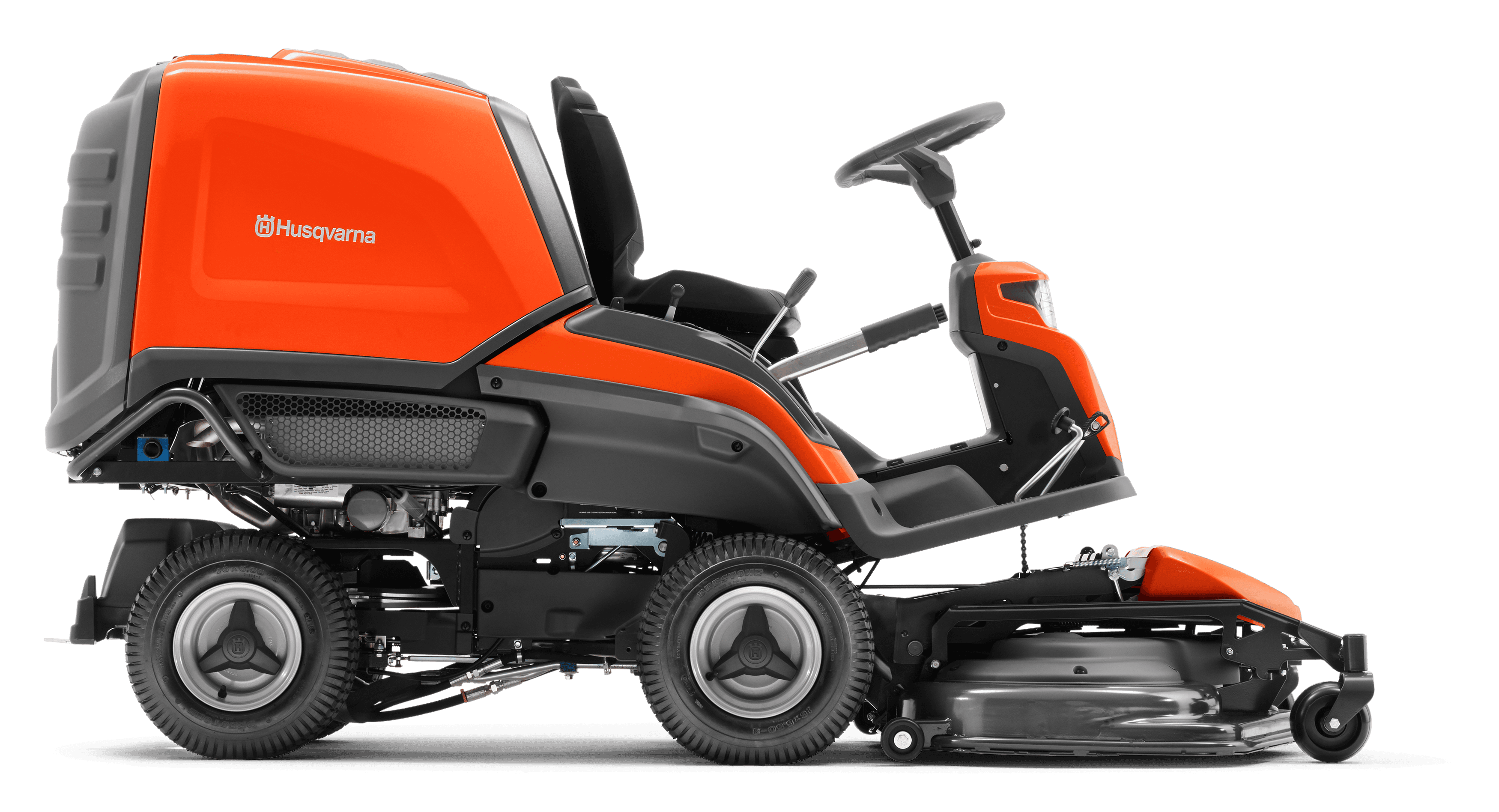

Homeowner/Landowner Riders

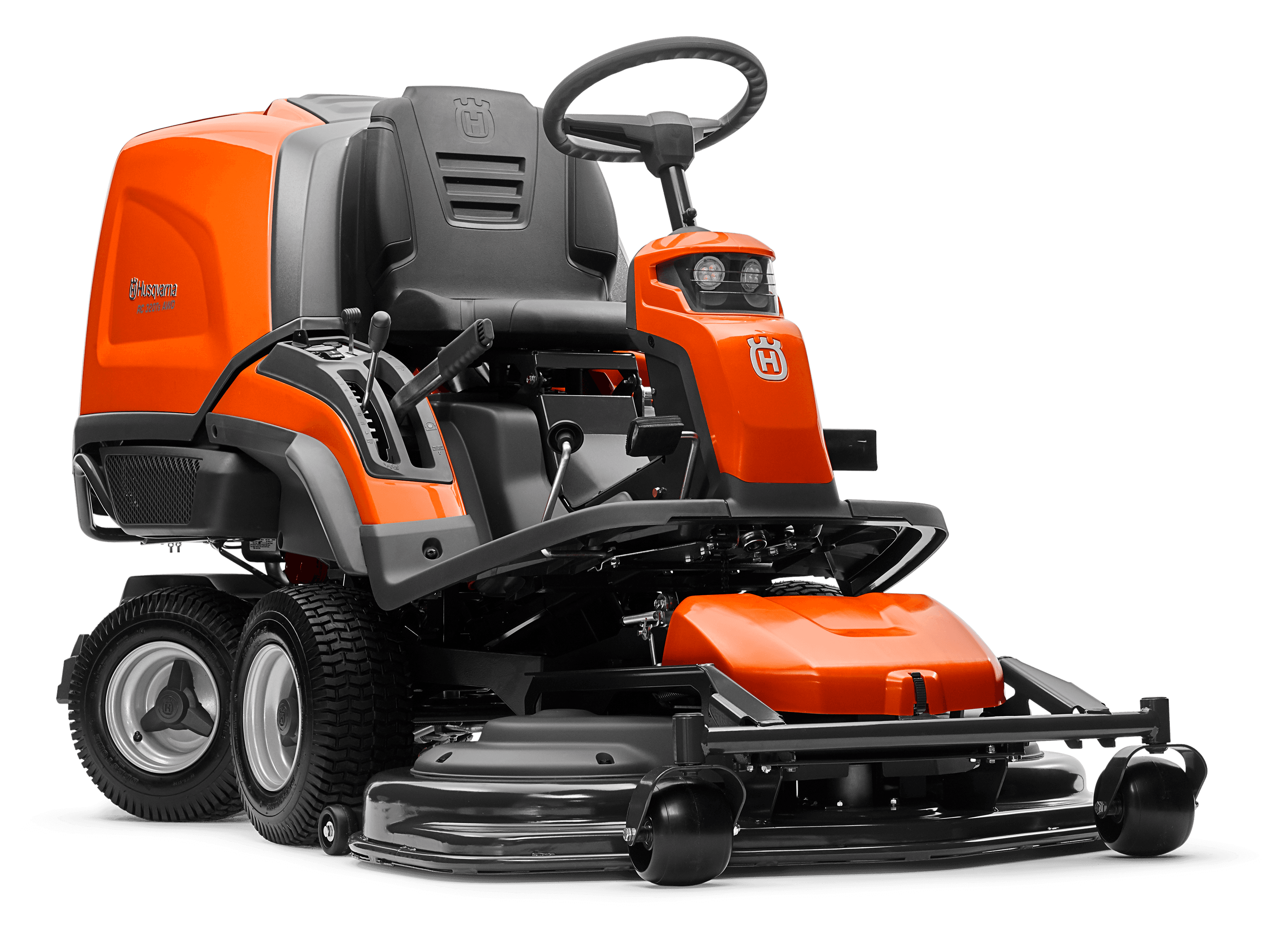

RC 320Ts AWD

$22,780.00Rec. retail price incl. GST SKU: 967628811

Power/fuel typePetrol
Cutting width, min103 cm

Product description

The RC 320Ts AWD Rider offers durable effectiveness, versatility and ease of use though innovative design. Its unique, non-clogging collection system feeds clippings straight from the front-mounted cutting deck to the 300 l bag. Automatic compaction increases run time between emptying, so you get more done. Articulated powered steering allows easy tight turns for superior manoeuvrability. All Wheel Drive means superior power and traction in all conditions. Cutting deck servicing and cleaning is tool-free, thanks to the unique 90° service position. Unbeaten area coverage and huge collection capacity make this a truly worthwhile investment for larger gardens. Price is complete with Combi Deck 103 (103cm).

Product Information

Features (26)

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes.

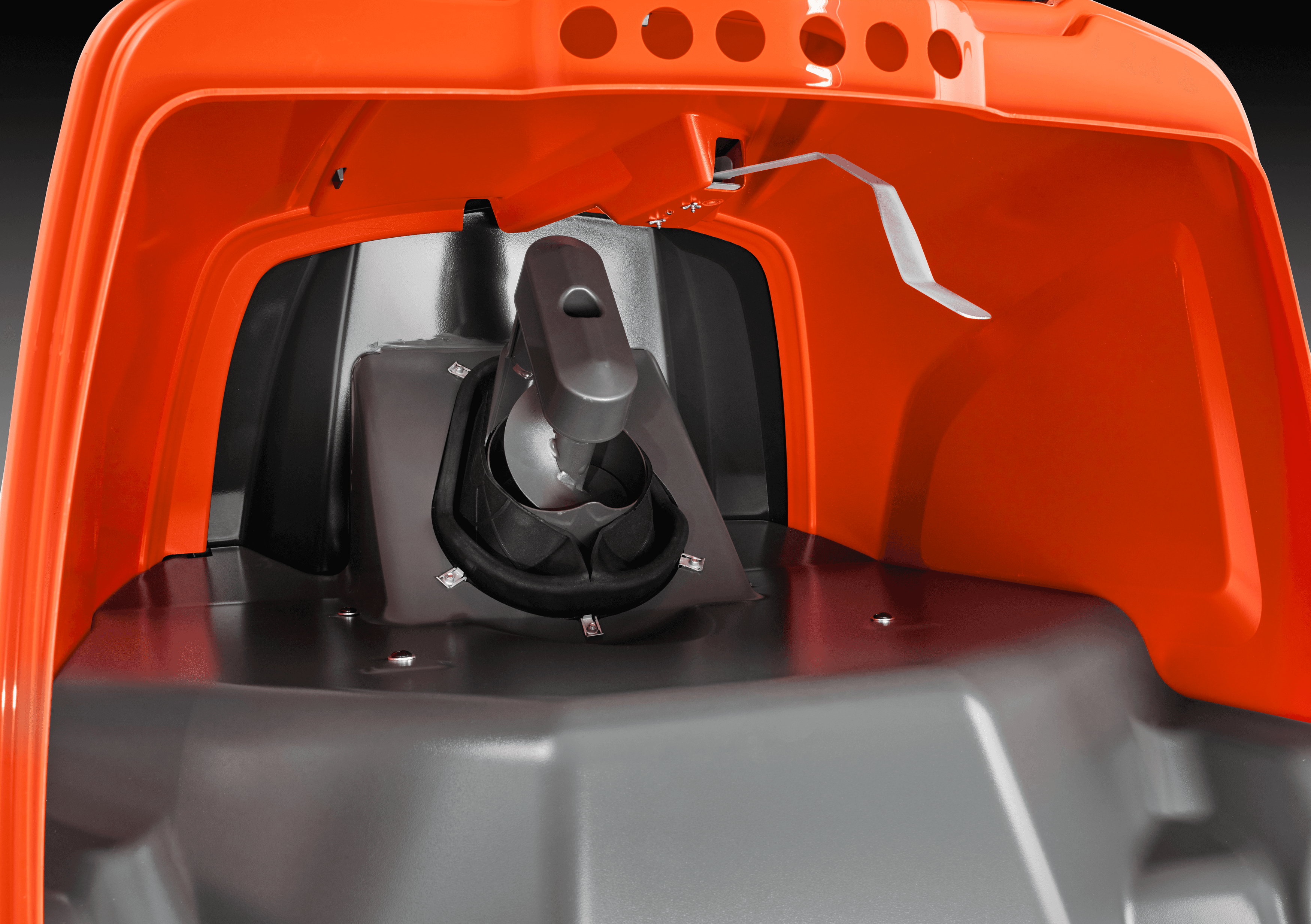

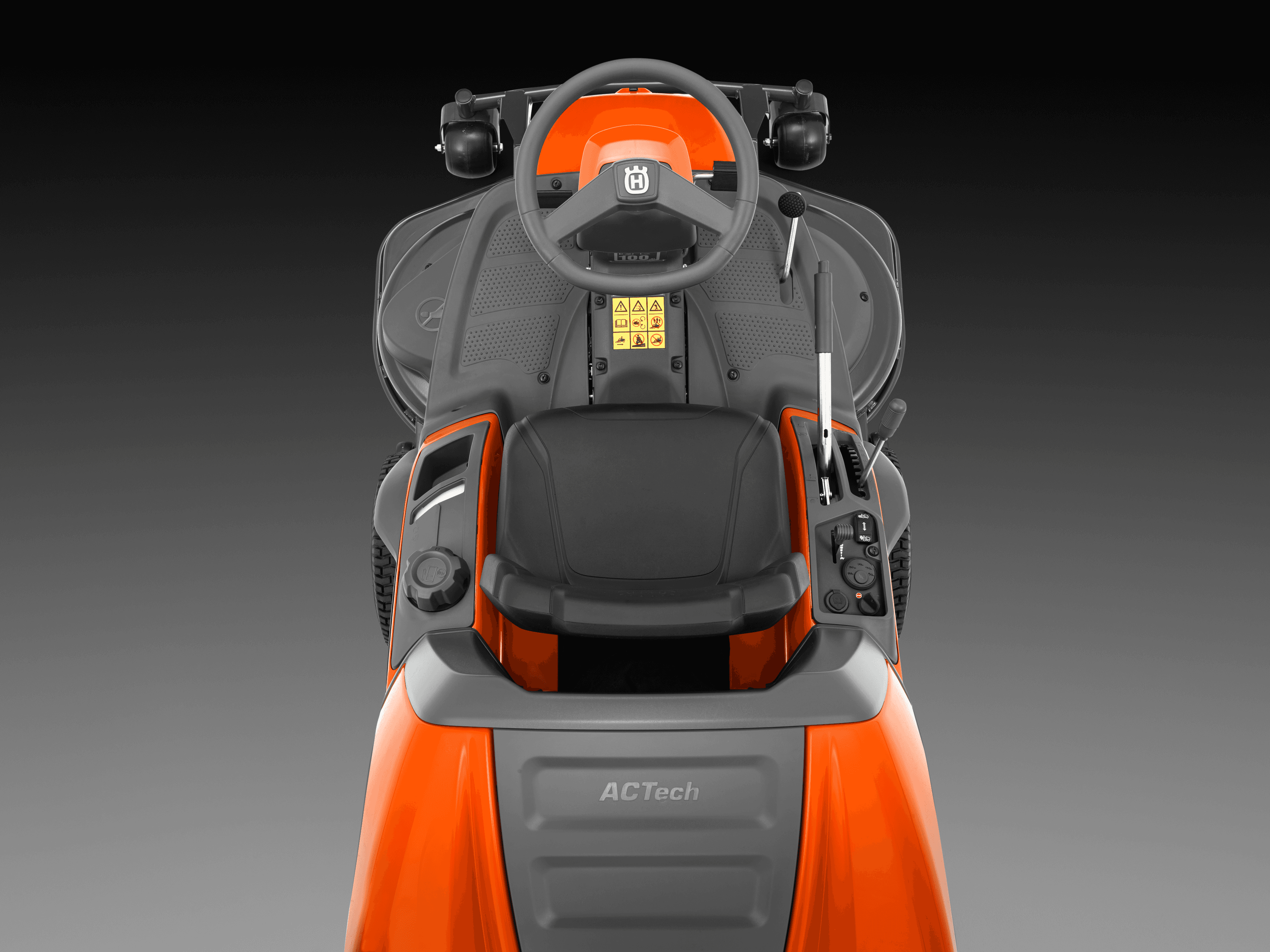

ACTech

The collection system with automatic packing allows more grass in the collector for fewer emptyings.

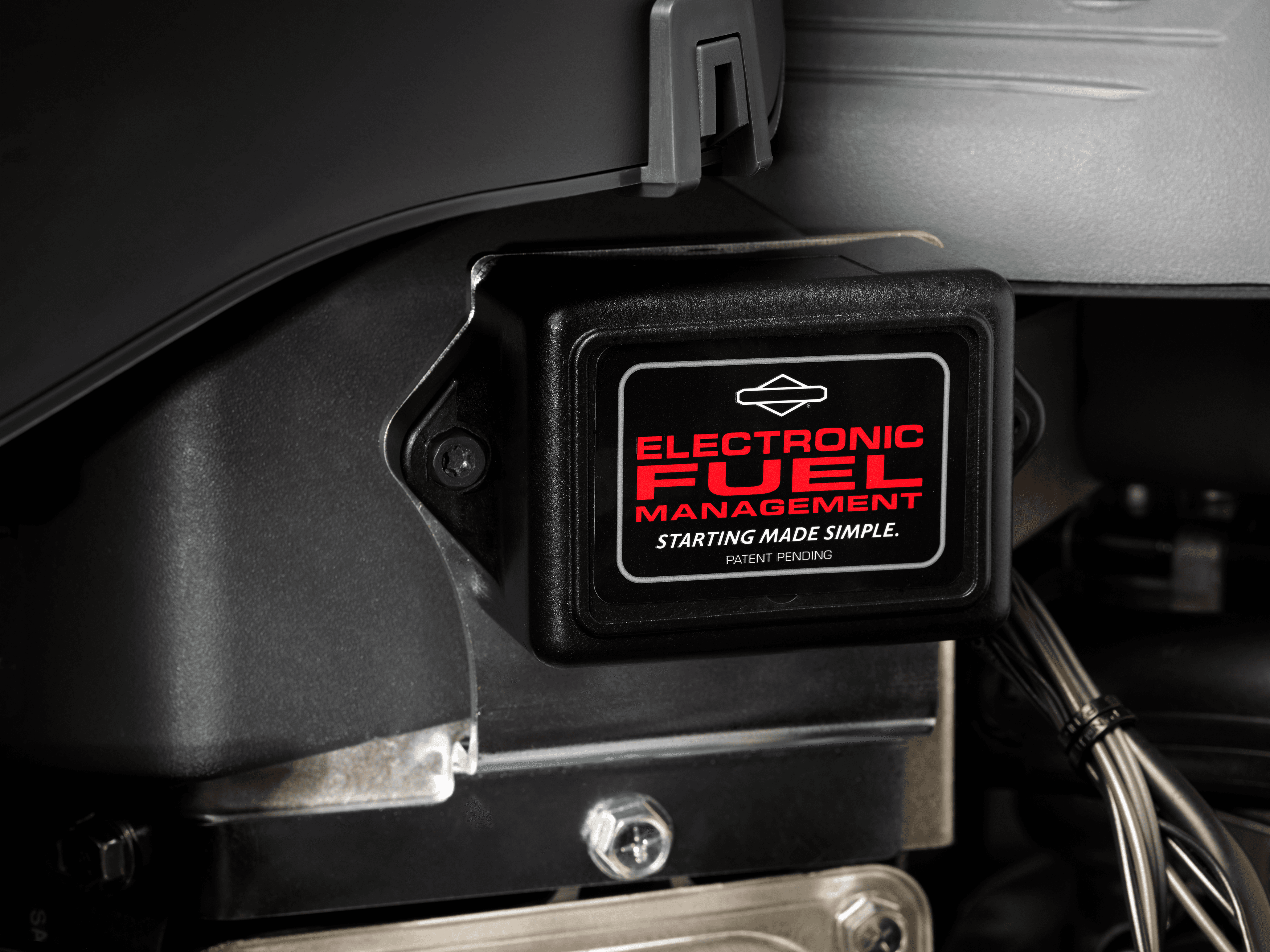

Easy to get operating under any weather conditions. No choking needed, just turn the key and go. image

Turn key start

Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

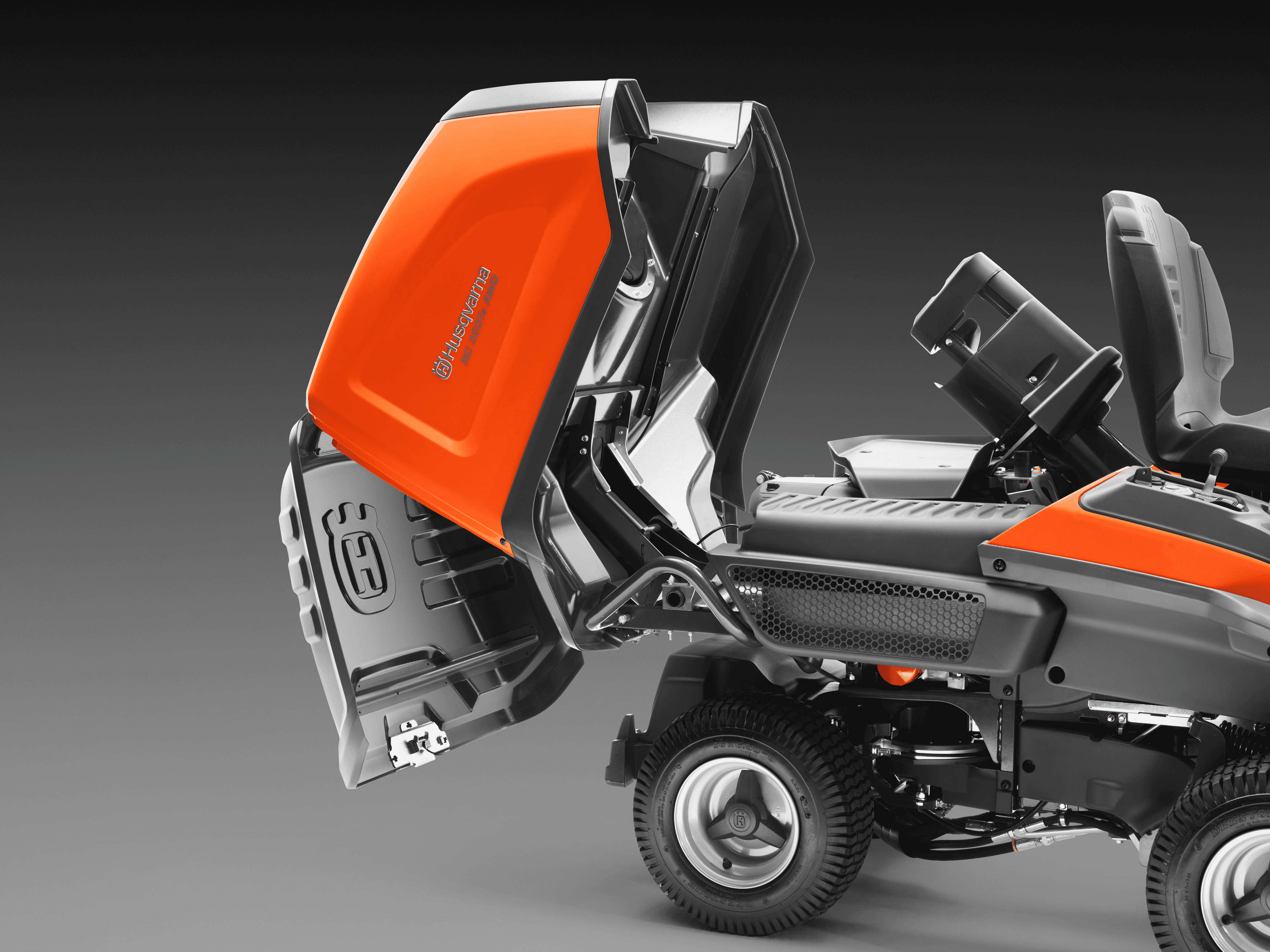

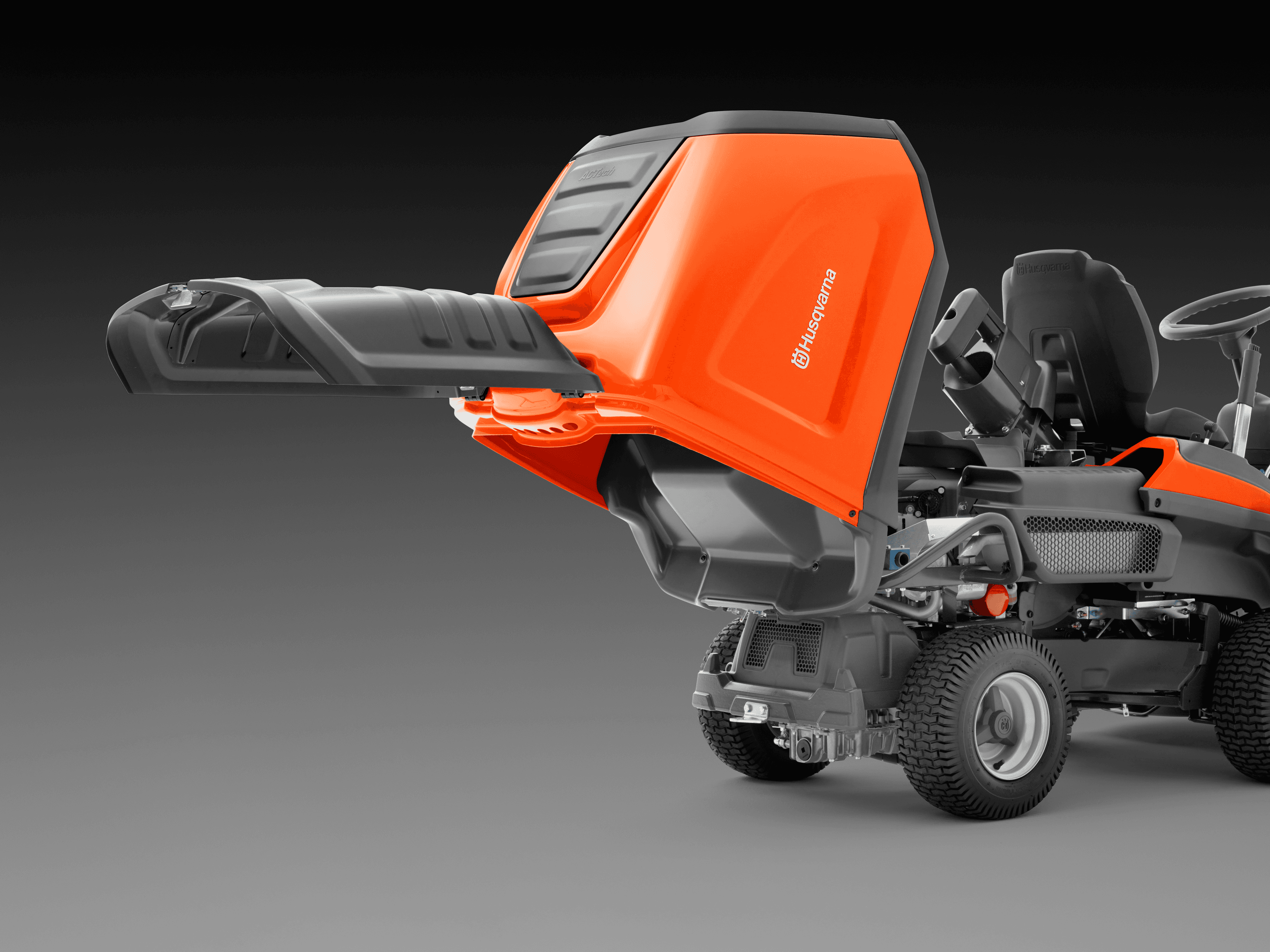

Empty collector from seat

The integrated collector quickly empties from the driver's seat for continuous, uninterrupted mowing.

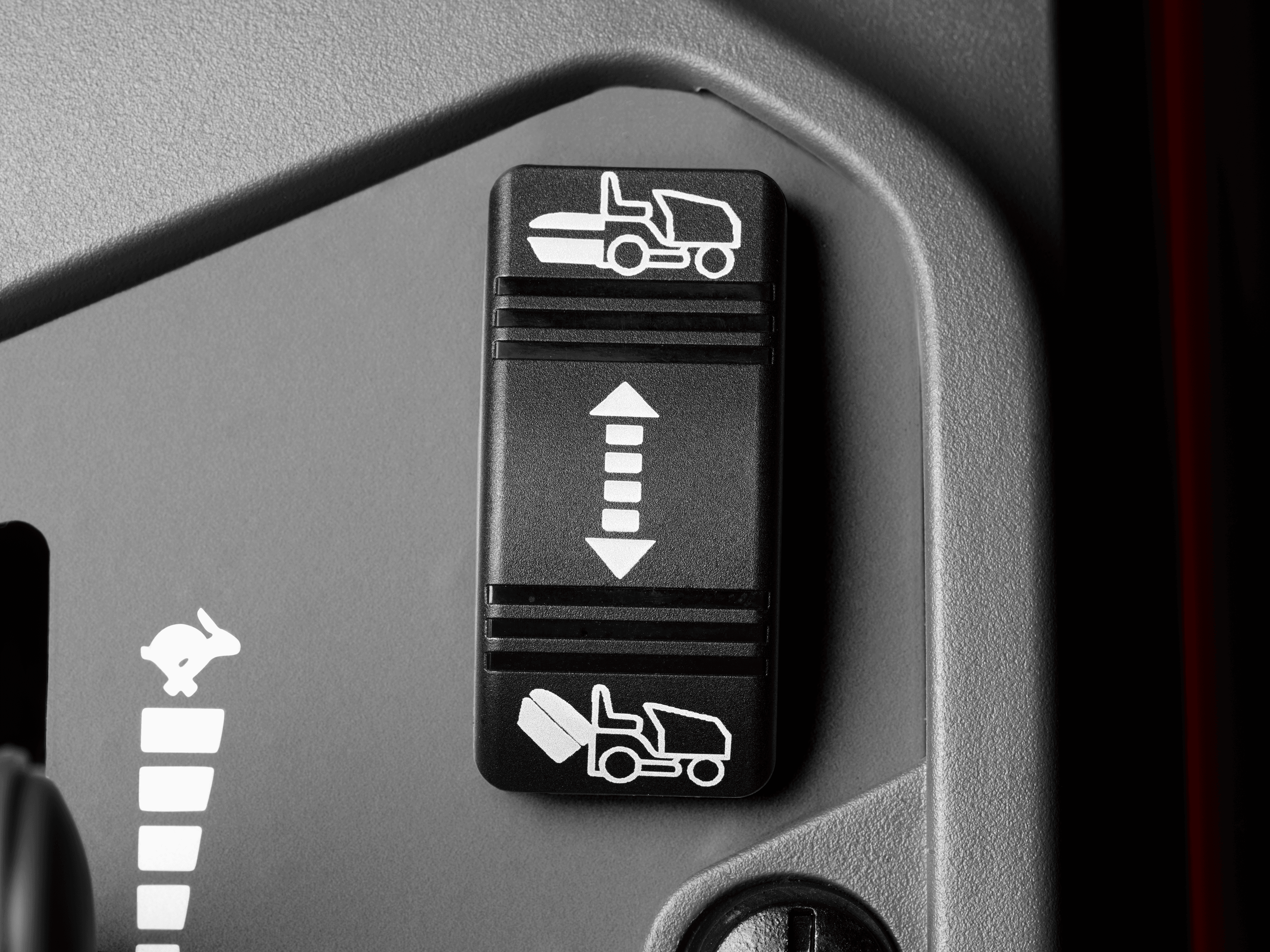

Non-collecting mode

Switch between collecting and non-collecting mode with the push of a button without leaving the driver's seat.

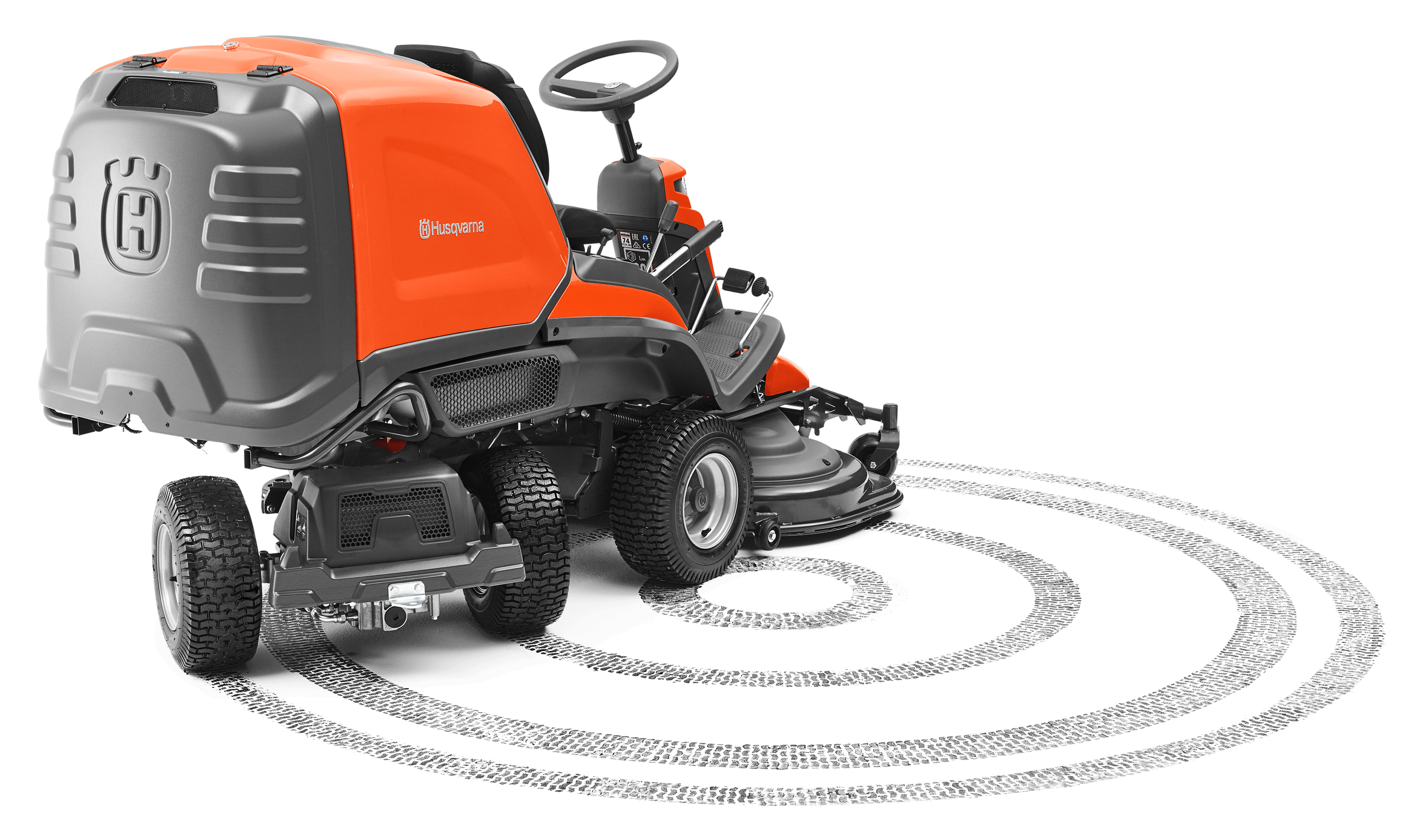

Articulated steering

The articulated steering gives excellent maneuverability and facilitates driving around obstacles.

Power steering

Power steering makes driving less strenuous and more comfortable.

Pedal-operated hydrostatic transmission

Speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

Easy-access service points

The hood can be tilted up into service position for easy access during service and maintenance.

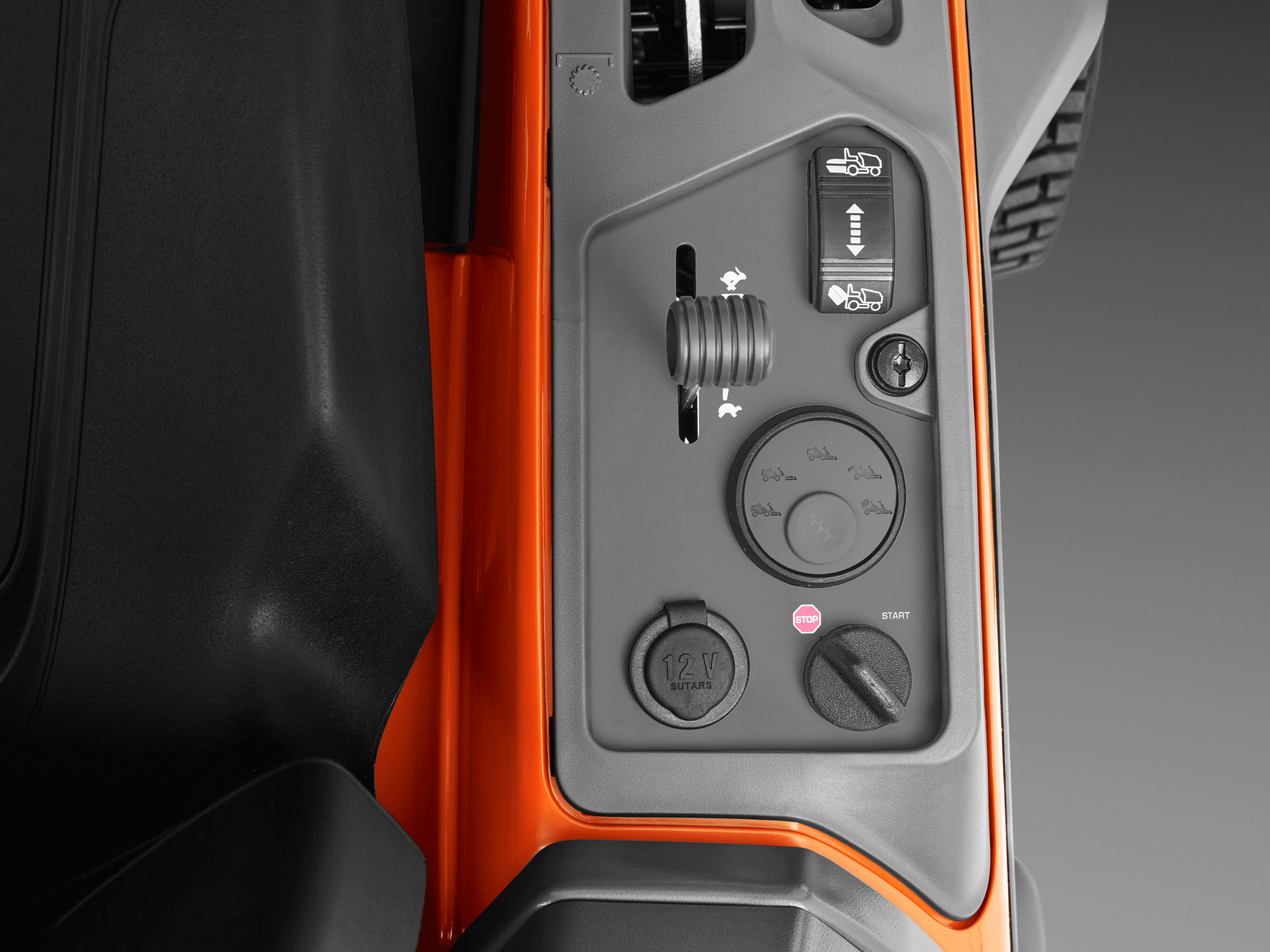

Easy-access controls

Controls are easy accessible for effective and ergonomic handling.

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

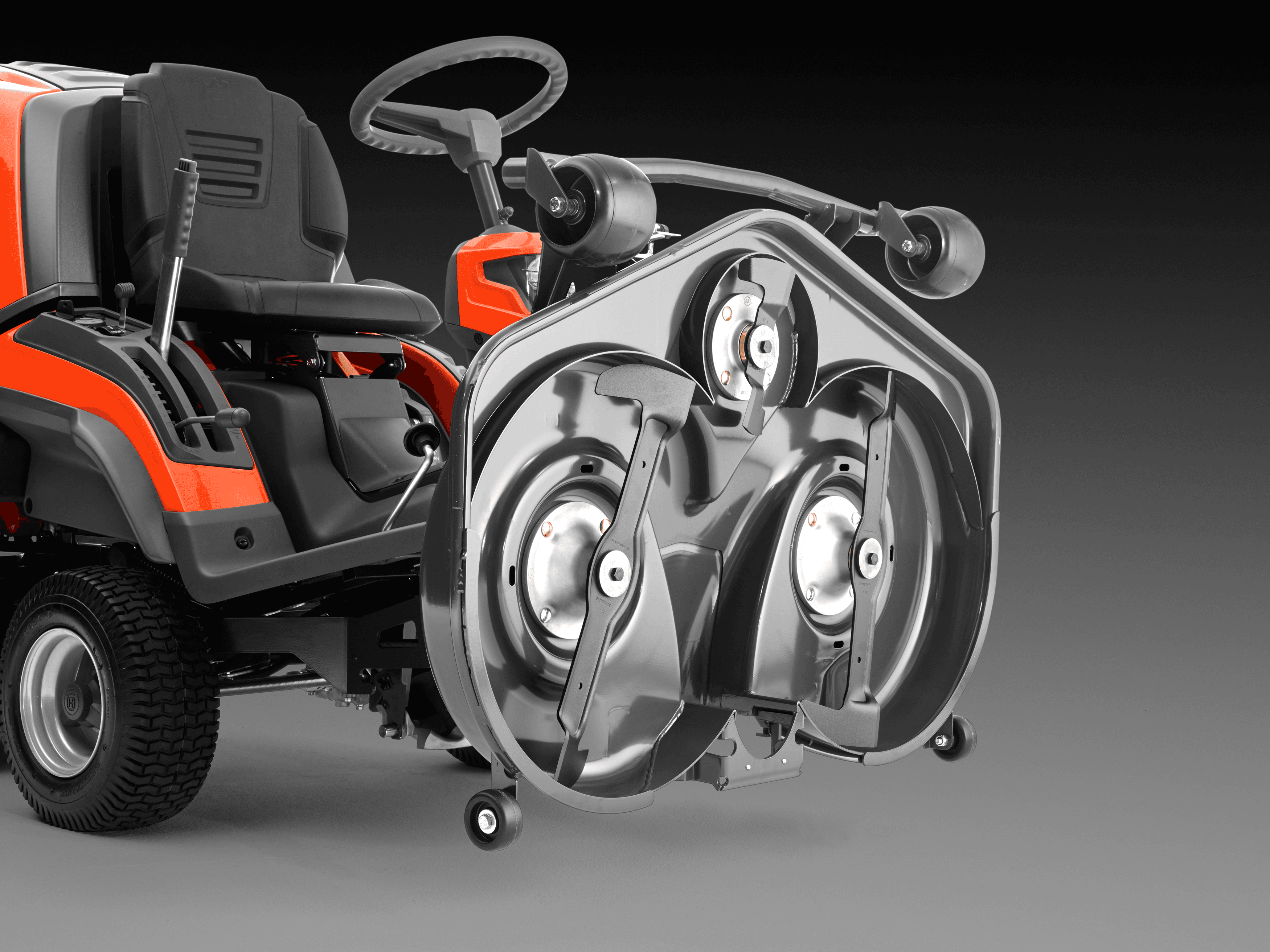

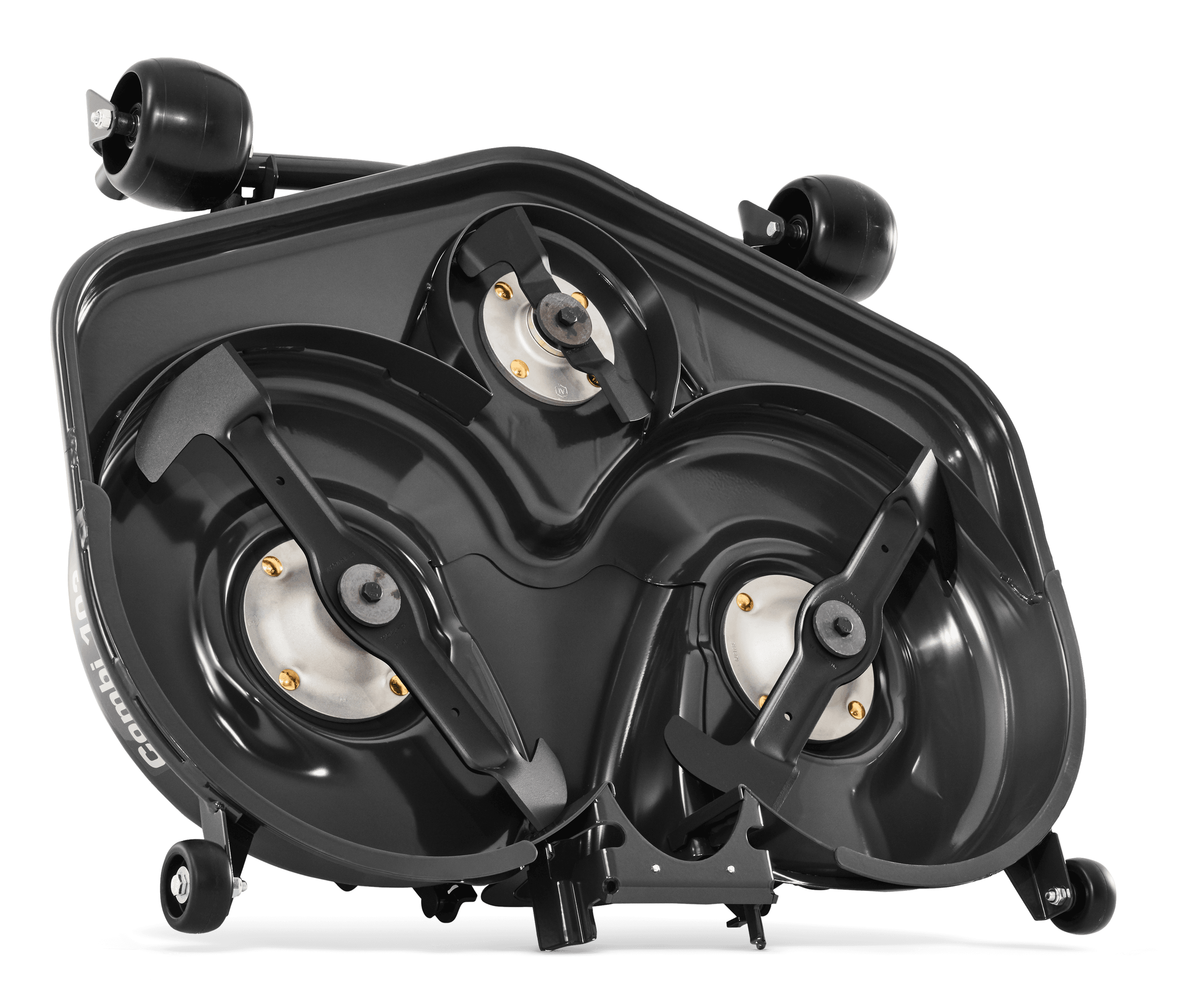

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces. image

Four large wheels

Equally sized wheels for a comfortable ride

Automatic blade engagement

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

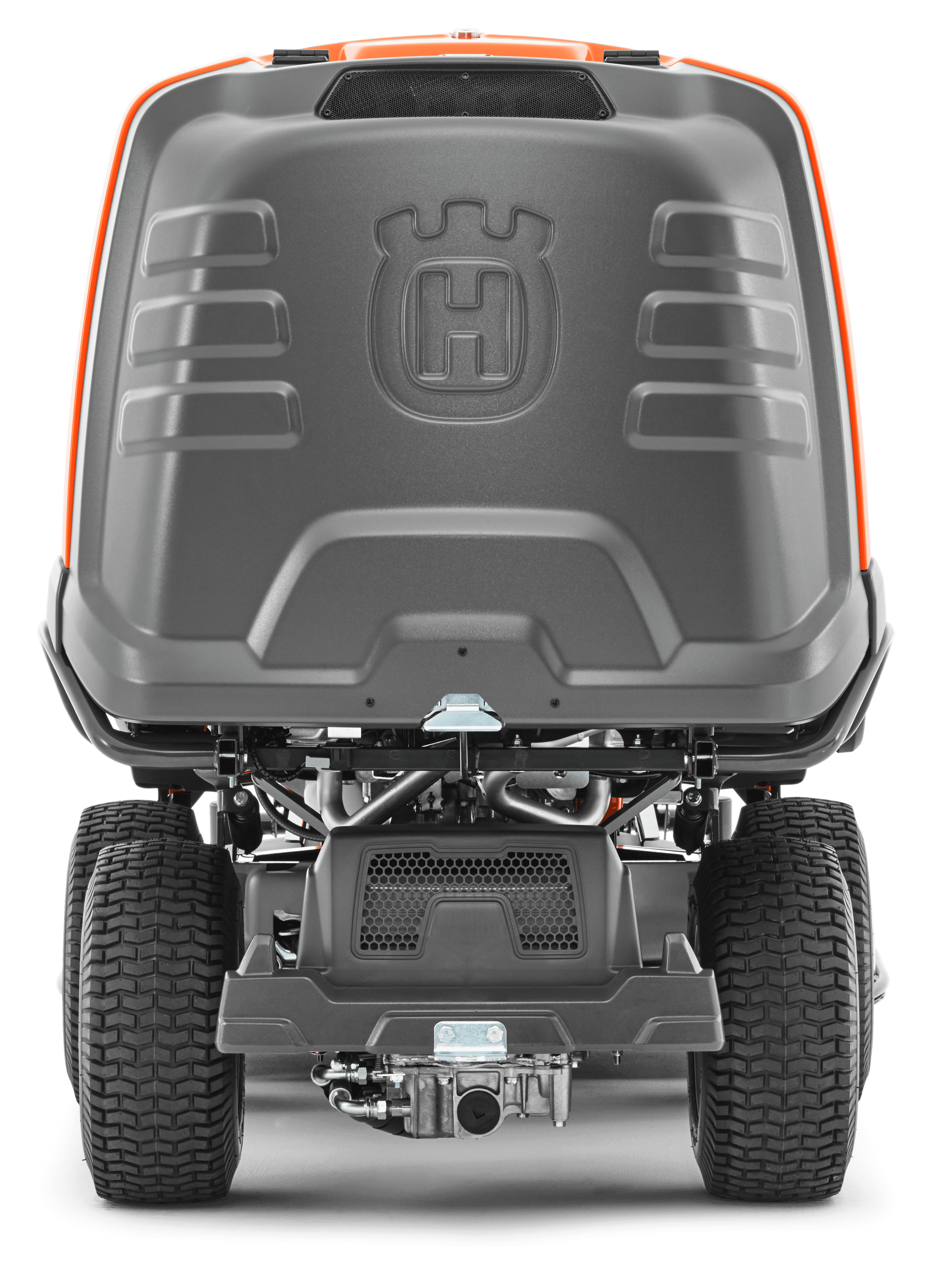

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. image

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels also on uneven surfaces.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides.

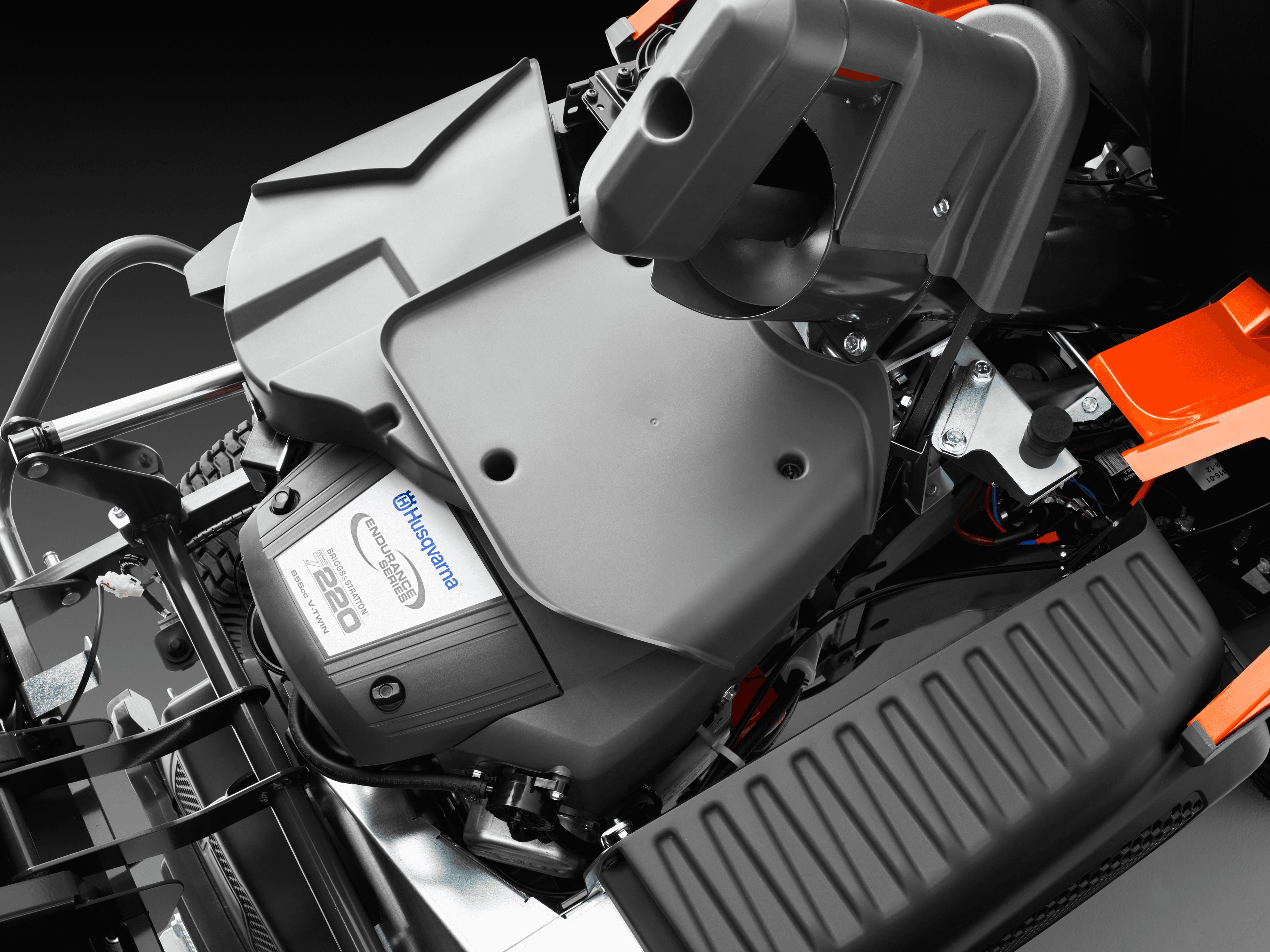

The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines. image

Engine behind driver

The rear-mounted engine provides a better overview of the mowing, and less emissions in the driver’s area.

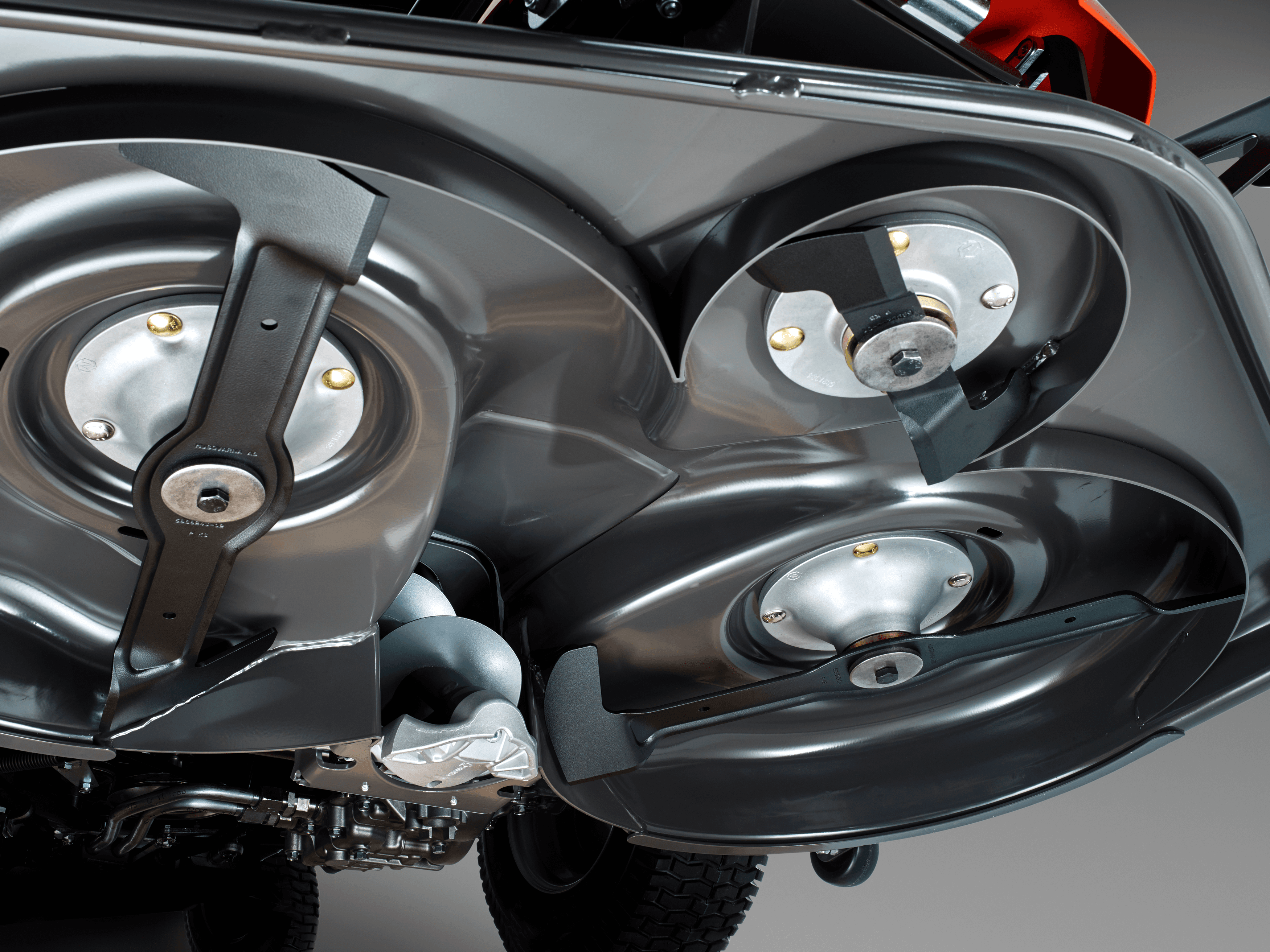

Floating cutting deck

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.

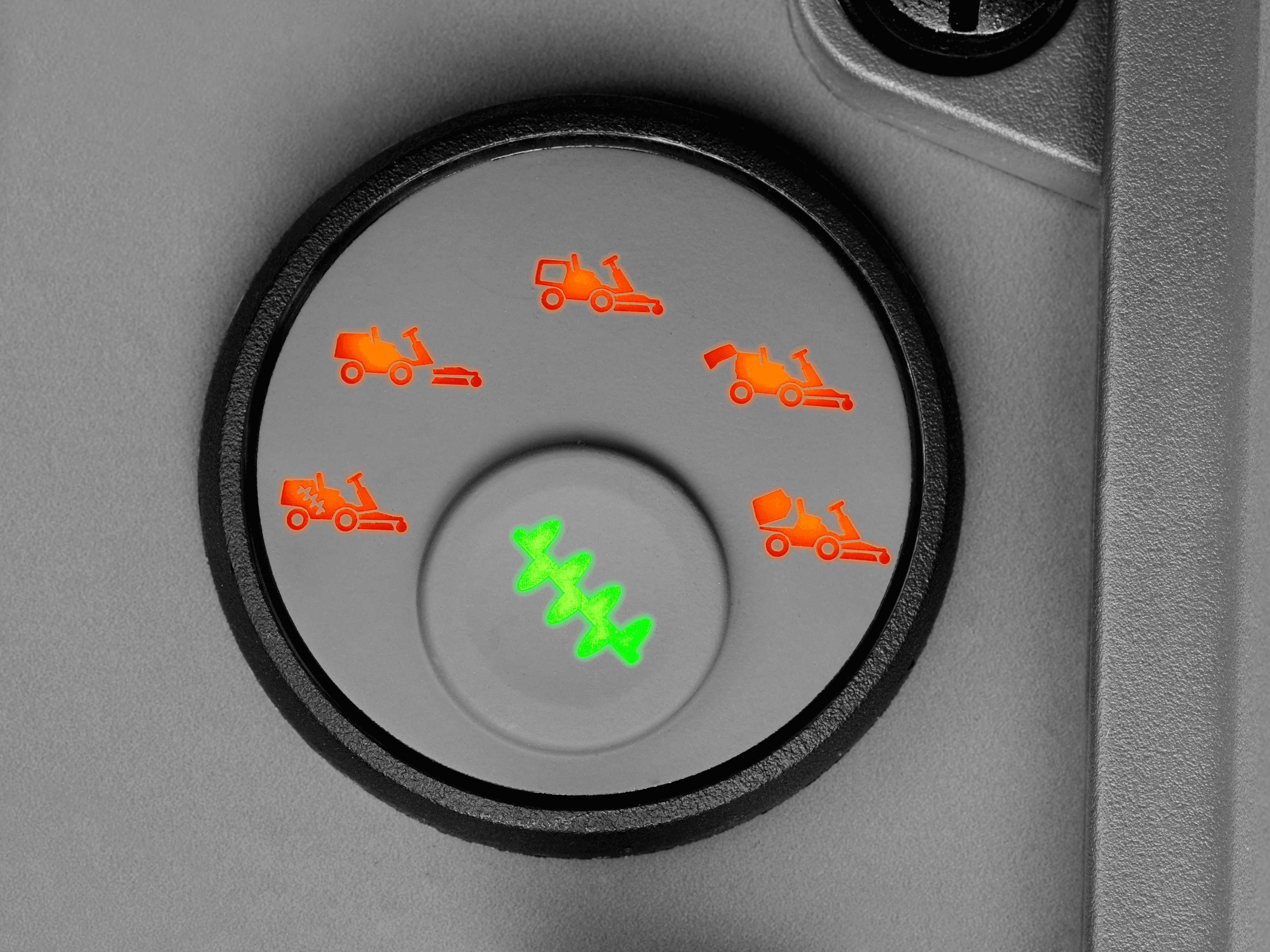

Hour meter with service minder

Indicates when it's time to service your lawn mower, making it easy to keep it in the best condition.

LED headlights

Gives over 50% larger lighted area compared to traditional incandescent lights.

12V socket outlet

12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

External fuel cap

Thanks to the external fuel cap, you don't have to open the engine hood when refueling.

Pivoting support wheels

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns.

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.

Easy to shift between cutting decks and front-mounted attachments, such as broom & flail mower. image

Attachment frame

The attachment frame makes it easy to shift between cutting decks and front-mounted attachments.

Specifications	Art No: 967628811
Output shaft power	12.6 kW
Weight (excl. cutting equipment)	328 kg
Cylinder displacement	656.0 cm³
Weight (complete product w/o side packed articles)	328 kg
Fuel tank volume	12 l
Sound pressure level at operators ear	85.0 dB(A)
Collector volume	300 l
Base machine, height	128.4 cm
Base machine, length	208.9 cm
Base machine, width	103 cm
Battery capacity	5.5 Ah
Battery pack weight	1.1 kg
Battery voltage	12.8 V
Cutting height max	75 mm
Cutting height min	25 mm
Cutting width, max	112 cm
Cutting width, min	103 cm
Fuel consumption	360 g/kWh
Fuel tank volume	3.17 gal (US)
Ground clearance	90 mm
Net power at preset rpm	3100 rpm
Net power at preset rpm Energy	12.6 kW
Oil capacity	1.9 l
Sound power level, guaranteed (LWA)	100.0 dB(A)
Sound power level, measured	99.0 dB(A)
Speed forward max	8 km/h
Speed reverse max	7 km/h
Uncut circle	60 cm
Vibration level seat	0.7 m/s²
Vibration level steering wheel	2.6 m/s²
Wheelbase	90.3 cm
